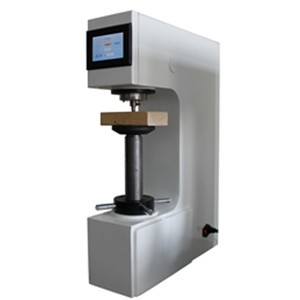

THW-1500 wood hardness Tester
Main advantages:
THW-1500 wood hardness, hardness measurement timber according to GBT 1941-2009 hardness testing standard methods. Dedicated to measuring the hardness of the wood.
The hardness of the maximum pressure of 15,000 cattle (1500 kg), measure all the wood, including the most hard wood hardness;
The hardness of high precision, simple operation, convenient and practical, high cost.
Main Function
- panel settings by penatration depth: 5.64 or 2.82 mm
- panel settings by loading speed: 3,4,5,6 mm / min
- automatically display the hardness value
Application area: Widely used in the hardness testing of timber. If accompanied with a wide variety , it can be also for the mechanical properties of component test profiles.
Technical parameters
Maximum load: 15,000N
Load accuracy: +/- 0.5%;
Minimum load: 1N, (Better than standard level)
Pressing depth accuracy: 1 micron (Better than standard level)
Dimensions: 550 * 210 * 750mm (mm)
Weight 89kg
Power: AC220V / 100W
Standard configuration
| Item | Quantity | Item | Quantity |
| Host | 1 | An instrument case | 1 |
| Test anvil | 1 | Plastic dust cover1 | 1 |
| Indenter | 1 | Product Manual1 | 1 |
| Power line1 | 1 | Product certification1 | 1 |
