THR-150/45DX-Z Rockwell, Superficial Rockwell hardness tester
Product Features:
- Italian design, modern and beautiful appearance, stable structure
- Touch screen interface, easy operation, multi-language versions
- Available for using after staring up, unnecessary for installing weights and debugging
- Electric loading, closed-loop control
- All Rockwell scales, 30 in total
- Automatically apply the initial load and main load
- Automatic correction of high, medium and low hardness numbers
- Automatic correction of load, with the force accuracy increased by a numerical level
- Set the password protection and parameters
- More information of sample and testing
- Data stored in USB flash disk, EXCEL format, easy for compiling and processing
- Adopt the modular design, easy maintenance
- Larger sample space, huge sample stage
Application Fields:
Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.
Sheet metal, thin-walled pipe, hardened steel, and small parts of hardness.
Widely used in machinery manufacturing, metallurgy plants, universities, laboratories, etc.
Operation Interface:

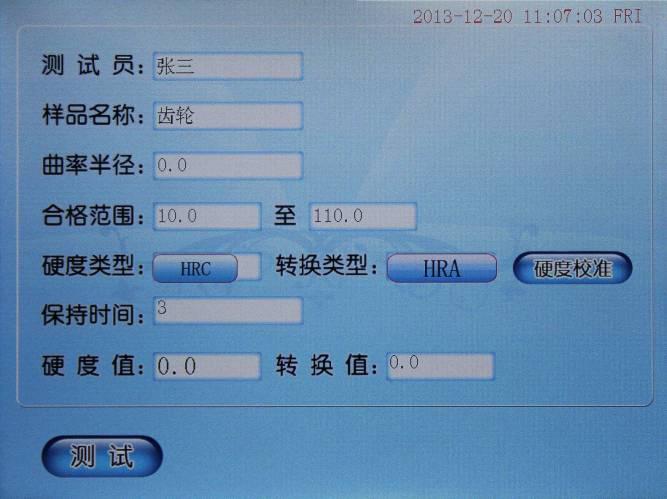

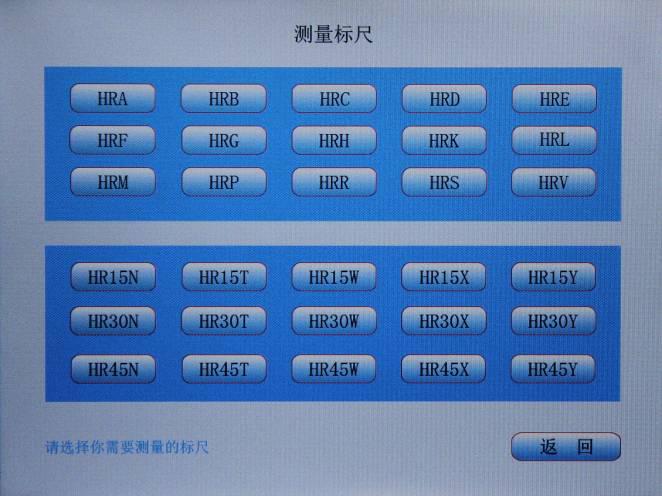

Main interface All Rockwell scales, 30 in total

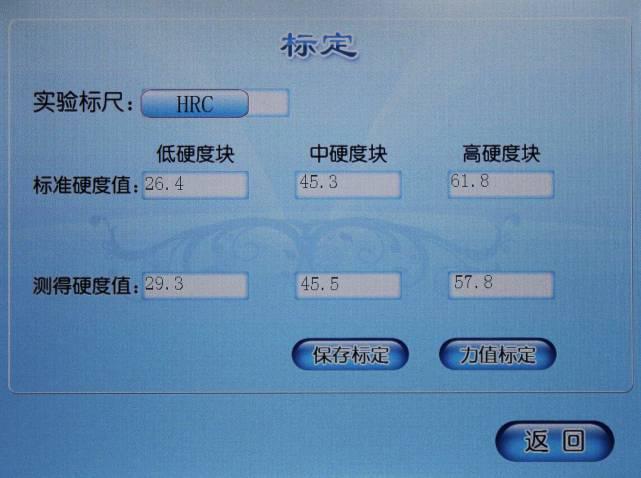

Automatic correction of high, medium and low hardness

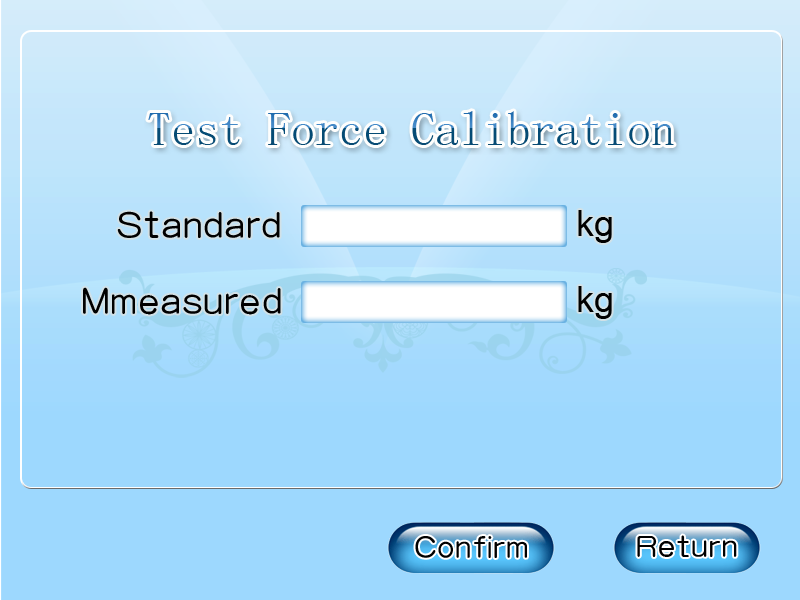

numbers Automatic correction of load
Technical Parameters:
| Product model | THR-45/150DX-Z |
| Exchanging scales | Rockwell, Brinell, Vickers |
| Dwell time | 0-60s |
| Initial load of Rockwell | 10kgf (98N) |
| Total load of Rockwell | 60kgf (588.4N) 100kgf (980.7N) 150kgf (1471N) |
| Initial load of Superficial Rockwell | 3kgf (29.4N) |
| Total load of Superficial Rockwell | 15kgf (147.1N) 30kgf (294.2N) 45kgf (441.3N) |
| Load value error | Less than 0.5% |
| Configuration | Z axis rising |
| Samples rise | Automatic |
| Automatic sample rate rise | 3mm/s |
| Hardness testing range | HRA: 20-96 HRB: 20-100 HRC: 20-70 HRD: 40-77 HRE: 70-100 HRF: 60-100 HRG: 30-94 HRH: 80-100 HRK: 40-100 HRL: 50-115 HRM: 50-115 HRR: 50-115 |
| Testing rage of Superficial Rockwell | HR15N: 70-94; HR30N: 42-86; HR45N: 20-77; HR15T: 67-93; HR30T: 29-82; HR45T: 10-72 |
| Hardness measurement accuracy | 0.1 |
| Executive standard | GB/T230.1 GB/T230.2 national standard JJG112 verification regulation |
| Max Height of Sample | 220mm |
| Distance of Indenter to outer wall | 200mm |
| Hardness reading | LCD display |
| Data output | USB flash disk |
| Power supply | AC220V |
| Net weight | About 70kg |
Accessories:
| Name | Quantity | Name | Quantity |
| Diamond Rockwell indenter | 1 | Ball indenter with the diameter of 1.5875 mm | 1 |
| Hardness block(HRB, HRC high, HRC low, HR15N, HR30N, HR30T) | 6 | Large, medium, V-type testing bench | 1 for each |
| USB flash disk | 1 | Dustproof plastic housing | 1 |
| Power line | 1 | Operating Instruction, Product Qualification Certificate | 1 for each |
